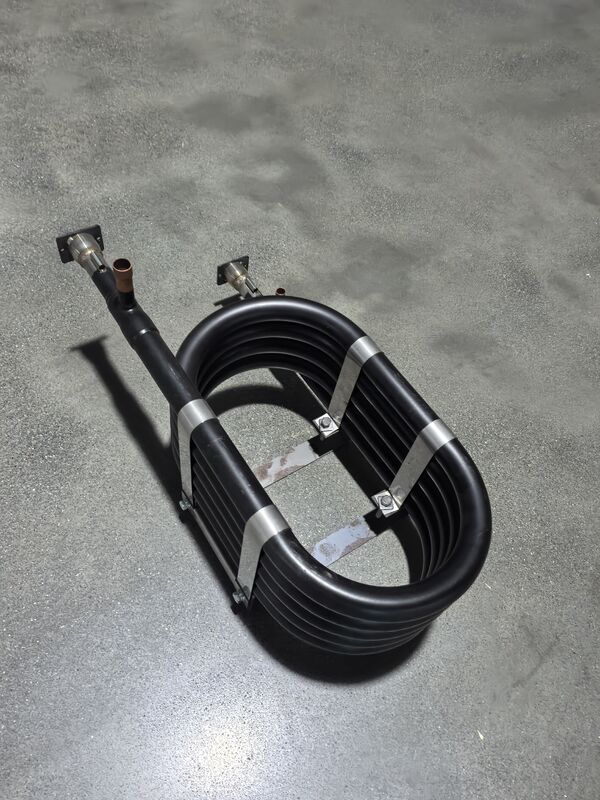

1.0Mpa Water Side Pressure Coaxial Heat Exchanger with Stainless Steel Outer Tube and Spiral Twisting Construction

Product Description:

The Coaxial Heat Exchanger is a highly efficient and reliable solution designed for various heating and cooling applications. Manufactured in China, this product exemplifies superior craftsmanship and advanced engineering, making it a trusted choice among professionals seeking durability and performance. As a product of a reputable condenser coils manufacturer, this heat exchanger combines innovative design with robust materials to ensure optimal heat transfer and long-lasting service life.

One of the standout features of this Coaxial Heat Exchanger is its construction. It is engineered as a stainless steel heat exchanger, utilizing high-grade stainless steel materials that offer excellent resistance to corrosion, scaling, and high temperatures. This not only enhances its durability but also makes it suitable for use in demanding environments where longevity and maintenance-free operation are critical. The stainless steel construction ensures that the heat exchanger maintains its structural integrity and efficiency even after prolonged exposure to harsh operating conditions.

The Coaxial Heat Exchanger operates based on a double pipe heat exchanger design, which consists of two concentric pipes allowing two fluids to flow in counter-current or co-current directions. This design maximizes the heat transfer surface area and improves thermal efficiency. The inner pipe typically carries the refrigerant, while the outer pipe carries the water or another fluid. This arrangement facilitates efficient heat exchange between the fluids, making it ideal for applications such as heating, cooling, and refrigeration systems.

In terms of pressure capabilities, this heat exchanger is designed to handle a refrigerant side pressure of up to 4.2 MPa, ensuring safe and reliable operation in a variety of refrigeration cycles and heat pump systems. On the water side, it can withstand a pressure of 1.0 MPa, which is sufficient for most standard water circuits in heating and cooling applications. These pressure ratings highlight the product’s robustness and suitability for both residential and commercial uses.

The heating capacity of the Coaxial Heat Exchanger ranges from 6 kW to 36 kW, offering flexibility to meet different system requirements. Whether you need a compact solution for small-scale heating or a more substantial unit for larger installations, this heat exchanger provides a scalable option that can be tailored to specific needs. This range of capacities makes it a versatile component in HVAC systems, industrial processes, and renewable energy applications.

As a product crafted by a leading condenser coils manufacturer, the Coaxial Heat Exchanger benefits from rigorous quality control and adherence to international standards. This ensures consistent performance, energy efficiency, and ease of integration into existing systems. The precision manufacturing process also guarantees tight tolerances and a leak-proof design, which are essential for maintaining system reliability and minimizing maintenance costs.

In summary, the Coaxial Heat Exchanger from China is an excellent choice for anyone seeking a durable, efficient, and high-performance heat transfer solution. Its stainless steel construction, ability to handle significant pressures on both refrigerant and water sides, and versatile heating capacity make it suitable for a wide range of applications. The double pipe heat exchanger design ensures superior thermal efficiency, while the expertise of the condenser coils manufacturer behind its production guarantees quality and reliability. Whether for residential, commercial, or industrial use, this coaxial heat exchanger stands out as a dependable and effective component in modern heating and cooling systems.

Applications:

The Gimleo COAXIAL-Z Coaxial Heat Exchanger is a versatile and reliable solution designed to meet various industrial and commercial heating and cooling needs. Manufactured in China and certified with CE, ROHS, and REACH, this product guarantees high quality and safety standards. With a heating capacity ranging from 6 to 36KW and a water side pressure of 1.0 Mpa, it is ideal for applications requiring efficient heat transfer under moderate pressure conditions.

This stainless steel heat exchanger is particularly suitable for HVAC systems, serving as a highly efficient HVAC coaxial heat exchanger. Its robust construction using stainless steel, SPHC steel tube, or titanium for the outer tube ensures durability and corrosion resistance, making it perfect for hot water heat exchanger applications in residential, commercial, and industrial environments. Whether for heating or cooling water in HVAC setups, the COAXIAL-Z model offers stable performance and long service life.

In industrial scenarios, the Gimleo COAXIAL-Z is widely used in chemical processing plants, power plants, and manufacturing facilities where precise temperature control is critical. Its maximum working pressure of 42 bar on the refrigerant side and 10 bar on the water side allows it to operate safely in high-pressure systems. The coaxial design enhances heat transfer efficiency while maintaining a compact footprint, making it suitable for installations with limited space.

Additionally, this hot water heat exchanger is frequently utilized in renewable energy systems such as solar water heating and geothermal applications. It efficiently transfers heat between fluids without mixing them, ensuring system integrity and energy savings. The product is packaged securely in plywood cases to ensure safe delivery, with a minimum order quantity of 20 sets and a supply ability of 500 sets per day, catering to large-scale projects and distributors.

With a price range between 50 to 500 USD per set depending on specifications, the Gimleo COAXIAL-Z offers cost-effective solutions without compromising quality. Delivery is guaranteed within 21 working days, and payment terms require 100% payment upon order confirmation via T/T. Overall, the Gimleo COAXIAL-Z stainless steel heat exchanger is an excellent choice for anyone seeking a durable, efficient, and certified coaxial heat exchanger for various heating and cooling occasions.

Support and Services:

Our Coaxial Heat Exchanger product is designed to provide efficient thermal transfer in a compact and durable form. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and performance optimization to ensure your system operates at peak efficiency.

Our expert technical team is available to help you understand the specifications and capabilities of the Coaxial Heat Exchanger, assist with system integration, and provide solutions tailored to your unique application requirements.

We also provide detailed product documentation, including user manuals, installation instructions, and maintenance schedules to support your operational needs.

In addition to technical support, we offer a range of services such as custom design consultations, repair services, and replacement part sourcing to maximize the lifespan and functionality of your Coaxial Heat Exchanger.

Our commitment is to ensure your satisfaction and the reliable performance of your heat exchanger through proactive support and expert service throughout the product lifecycle.

Packing and Shipping:

Our Coaxial Heat Exchanger is carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped with protective materials to prevent damage from shocks, vibrations, and moisture. The product is then placed inside a sturdy, custom-designed cardboard box that fits the exchanger snugly, minimizing movement and enhancing safety.

For additional protection, the box is reinforced with foam inserts or padding to absorb any impact. The packaging is clearly labeled with handling instructions, including “Fragile" and “This Side Up" markers to guide safe handling by shipping personnel.

We offer various shipping options to accommodate your needs, including standard ground, expedited, and freight services. All shipments are tracked and insured to ensure timely and secure delivery. Upon receipt, customers are advised to inspect the packaging and product for any signs of damage and report any issues immediately.

Our commitment to quality packaging and reliable shipping ensures that your Coaxial Heat Exchanger arrives in perfect condition, ready for installation and operation.

FAQ:

Q1: What is the brand and model number of the coaxial heat exchanger?

A1: The coaxial heat exchanger is branded as Gimleo, and the model number is COAXIAL-Z.

Q2: Where is the Gimleo COAXIAL-Z coaxial heat exchanger manufactured?

A2: The Gimleo COAXIAL-Z is made in China.

Q3: What certifications does the Gimleo COAXIAL-Z coaxial heat exchanger have?

A3: This product holds CE, ROHS, and REACH certifications, ensuring compliance with international standards.

Q4: What is the minimum order quantity and price range for the Gimleo COAXIAL-Z?

A4: The minimum order quantity is 20 sets, with a price range between 50 to 500 USD per set depending on specifications.

Q5: What are the packaging and delivery details for the Gimleo COAXIAL-Z coaxial heat exchanger?

A5: The product is securely packaged in plywood cases. The delivery time is approximately 21 working days after order confirmation.

Q6: What payment terms does Gimleo offer for the COAXIAL-Z heat exchanger?

A6: Payment terms require 100% payment via T/T upon order confirmation.

Q7: What is the supply ability of the Gimleo COAXIAL-Z coaxial heat exchanger?

A7: Gimleo can supply up to 500 sets per day of the COAXIAL-Z model.
